Product Description:

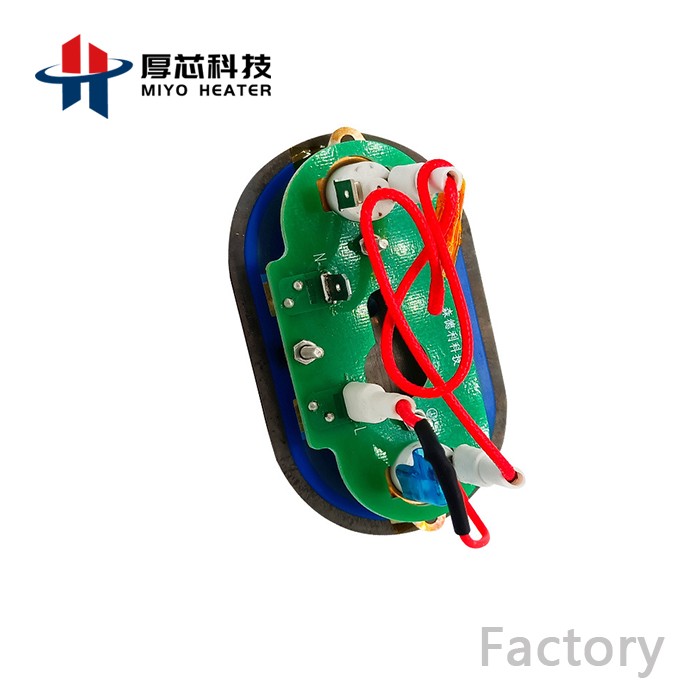

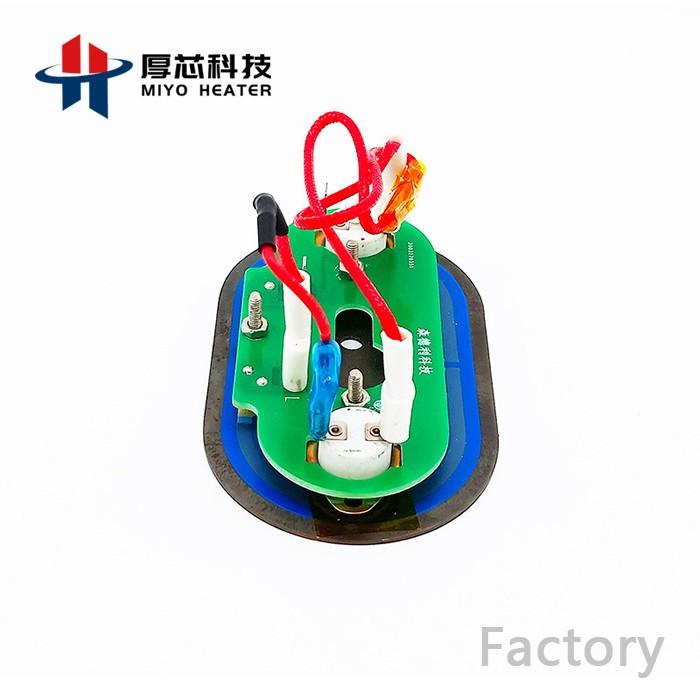

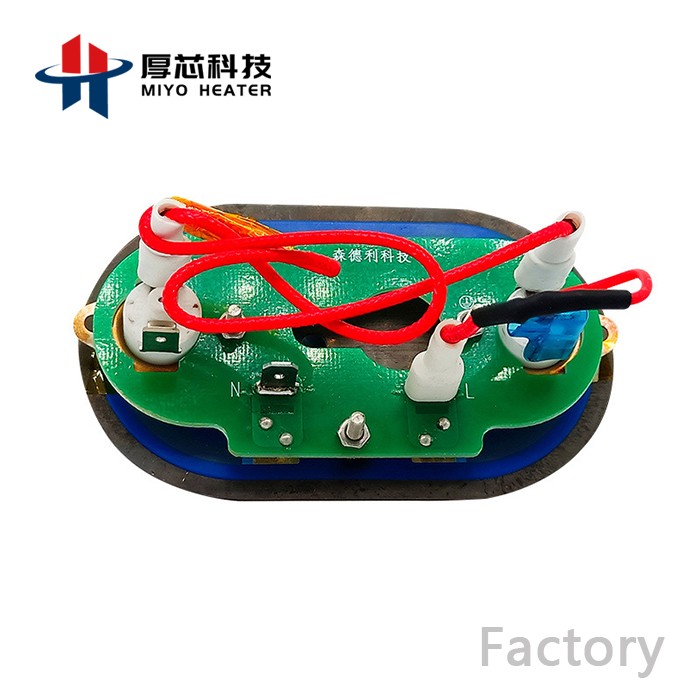

thick film steel heating components
Stainless steel substrate thick film electric heating plate is the use of international advanced HOS new technology, the use of thick film screen printing process on the stainless steel substrate printing insulating medium, conductor, heating resistance. Special insulation envelope and other materials, through high temperature sintering of new components, with light weight, high thermal efficiency, fast heating speed, waterproof, moisture-proof, no odor, long service life, energy saving and environmental protection, high mechanical strength, vibration resistance, safety and reliability.
(A) Heating components:
1. The power density is large, and the power density of thick film electric heating components is generally 40~60W/cm2, which is nearly ten times that of alloy electric heating materials in household electric heating appliances.
2. The response speed is fast, the start speed of the thick film electric heating component is very fast, and the surface heating speed of the thick layer of the resistance film can reach 200~300℃/sec, which is not achieved by the electric heating alloy component. This advantage makes the thick film electric heating components can be applied to appliances that require rapid heating, such as electric heaters, electric water heaters, electric heating kettles, etc.
3. High mechanical strength, strong vibration resistance and thermal shock resistance. The thick film electric heating component will not produce high temperature brittleness like alloy electric heating material, and the thick film layer and stainless steel substrate bonding force is strong.
4. Compact shape and controllable heating field. The electric heating component has a flat and ultra-thin form factor for easy installation and use. The resistance track can be designed at will, so that the temperature field (uniform or heterogeneous) can be controlled according to the needs of the heating appliance, and there are no heating blind spots.
5. Long service life, traditional ele
