Product Description:

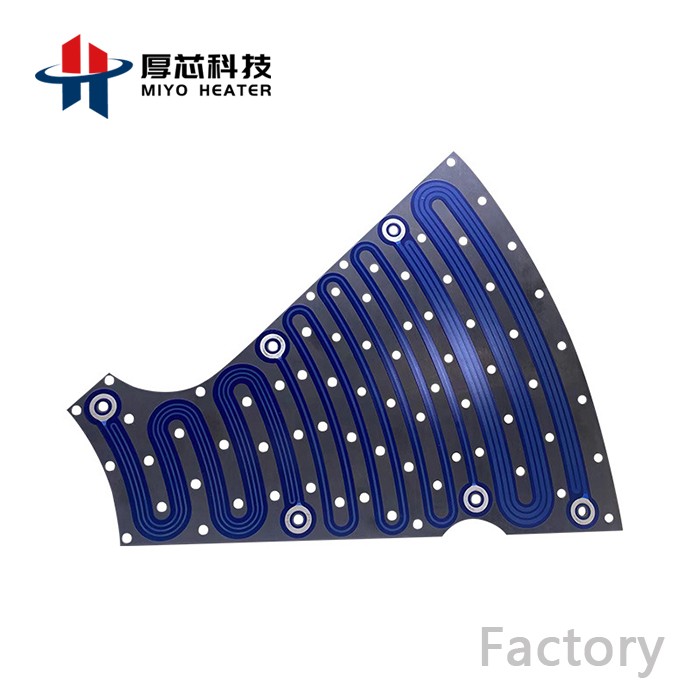

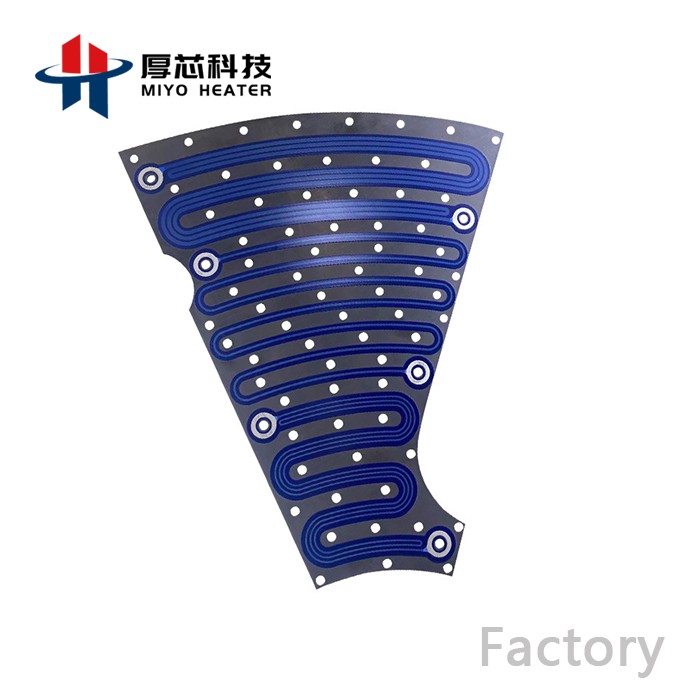

high power density thick film heater
- Using thick film printing process, printing insulating medium, heating resistance, conductor, glass protective glaze and other materials on the stainless steel substrate, through high temperature sintering of a new type of heater device.
- The product has the following characteristics:
Using thick film technology, the process is mature and reliable;
High power density: 5-75W/cm;
The entire heater component is laser welded with all stainless steel
Heating temperature rise fast, low heat capacity, small temperature fluctuation, can be heated in an instant, 3 seconds out of hot water;
High mechanical strength, vibration resistance, thermal shock resistance;
Small size, compact shape, convenient installation;
Special technology bimetal sheet jump temperature control, and there is no heating blind area;
Long service life, up to 100,000 hours or more;
Energy saving, thermal efficiency can reach more than 95%;
Flow rate: 350-1500ml/min
Environmental protection, the inner wall is sprayed with special environmental protection coating, with strong corrosion resistance, no toxic ingredients and heavy metal ions, through SGS testing, in line with ROHS standards;
Applicable voltage: 5-380V
Application: household electric kettle, water dispenser, electric coffee pot, electric water heater, humidifier, hanging ironing machine, solar auxiliary heater, etc.
